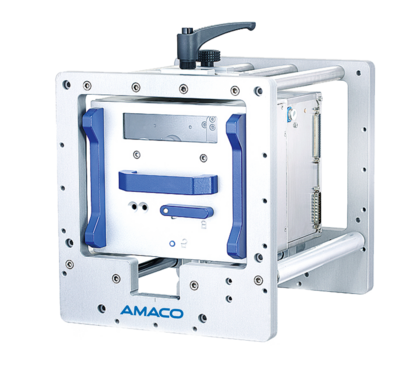

TTCI II_freigestellt
Thermal transfer printer

TTCI II

Continuous or intermittend printing solution.

Contact us
Key Features

The AMACO Thermal Transfer Printer of the TTCI II series is available as continuous or intermittend printing solution to print fixed or changing data on the job. This solution meet your needs through an horizontal or vertical mounting option.



  • In-line or standalone solutions for sharp and precise highest contrast printing

  • Ideal for fixed and changing variable data

  • Printing during operation or stand still of the packaging machine

  • Continuous or intermittend printing solution

  • Horizontal or vertical mounting option through flexible bracket system

  • Left or right version

  • Single color high quality print

  • UDI compliant printing [GS1 | HIBC]

  • Connectivity [Ethernet | USB | ERP]

  • Intuitive graphical user interface with icon buttons

  • 7" touch-screen color display WYSIWYG with preview for verifying the layout

  • Up to 900 m ribbon capacity

  • Near Edge printhead

Continuous solution

Key Benefits

  • Bracket with rubber roller for continuous print mode

  • Printing during operation of packaging machine

  • Printing during stand still of the printhead while packaging foil is guided through

TTC_Rahmen_Weißraum
Intermittend solution

Key Benefits

  • Bracket with counter pressure plate for intermittend print mode

  • Printing during stand still of packaging machine

  • Printing during movement of the printhead over the foil in order to move back to initial position

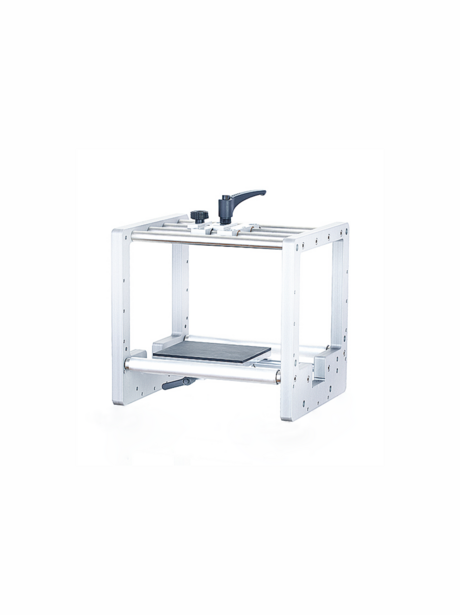

TTI_Rahmen_Weißraum
Technical Data | Continuous
Print Length Max. 6000 mm
Print Width Max. 53.50 mm
Print Resolution Max. 300 DPI
Print Speed Max. 800 mm / sec.
Top Web Max. 750 mm



Print Length Max. 3000 mm
Print Resolution Max. 106.60 mm
Print Resolution Max. 300 DPI
Print Speed Max. 600 mm / sec.
Top Web Max. 750 mm



Print Length Max. 3000 mm
Print Resolution Max. 128 mm
Print Resolution Max. 300 DPI
Print Speed Max. 600 mm / sec.
Top Web Max. 750 mm



Technical Data | Intermittend
Print Length Max. 75 mm
Print Width Max. 53.50 mm
Print Resolution Max. 300 DPI
Print Speed Max. 600 mm / sec.
Back Speed Max. 600 mm / sec.
Top Web. Max. 750 mm



Print Length Max. 75 mm
Print Width Max. 106.60 mm
Print Resolution Max. 300 DPI
Print Speed Max. 600 mm / sec.
Back Speed Max. 600 mm / sec.
Top Web. Max. 750 mm



Print Length Max. 75 mm
Print Width Max. 128 mm
Print Resolution Max. 300 DPI
Print Speed Max. 600 mm / sec.
Back Speed Max. 600 mm / sec.
Top Web. Max. 750 mm



Industries & Applications

  • Medical Device Industry
  • Pharmaceutical Industry
  • Food Industry
  • Other Industries
Thermal Transfer Printer

Consumables

Near Edge Ribbons | Available in various qualities, colors and dimensions
Thermal Transfer Ribbon

Choose from different compositions, colors and dimensions.
