Digital Piezo DOD Inkjet

D-JET

Single Color high quality in-line printing for flexible production modes.

Key Features

The AMACO Piezo DOD Inkjet Printer of the D-JET series is the all-in-one solution for full surface UDI compliant in-line printing using an integrated vision control system [optional].

Speed and versatility combine to increase flexibility and productivity. Designed for integration with horizontal form, fill & seal or blister machines.

Full surface in-line printing on demand directly on the top web material
Printing during the advance of the packaging machine up to 1000 mm / sec.
Single color high quality print
UDI compliant printing [GS1 | HIBC]
Connectivity [Ethernet | USB | ERP]
Automatic purge position for safe & convenient cleaning
Print preview and rotation of label design
Windows driver for flexible IT network & ERP integration
Award winning & space saving industrial stainless steel design

Go beyond with full surface in-line printing

Key Benefits

High resolution printing
Big inkjet performance in small size
No noise pollution during operating
Ink refill process without downtime
No moving parts | Minimum maintenance & highest durability
Variable resolutions & drop volumes allow to balance cost, quality and speed
Unique window designed InteliTouch display for easy handling & smart user guidance and control
Highest quality of all mechanical & electronic parts tailored for medical & pharma industry applications

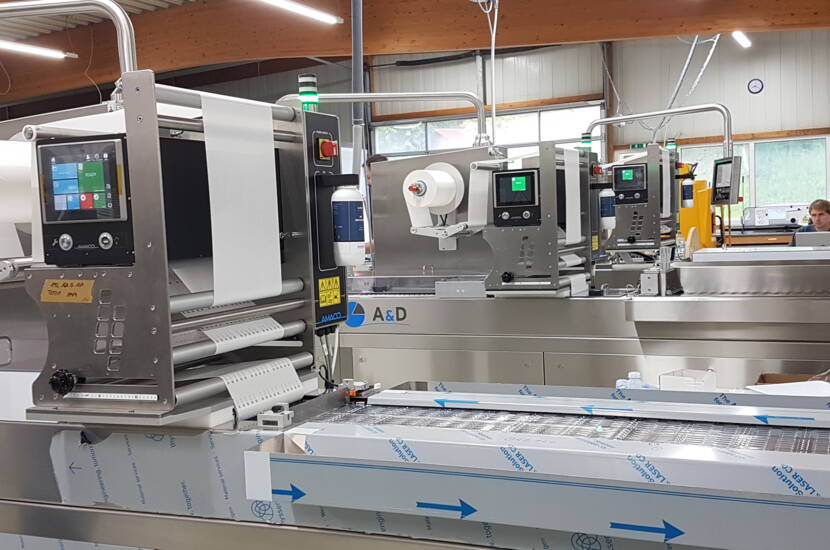

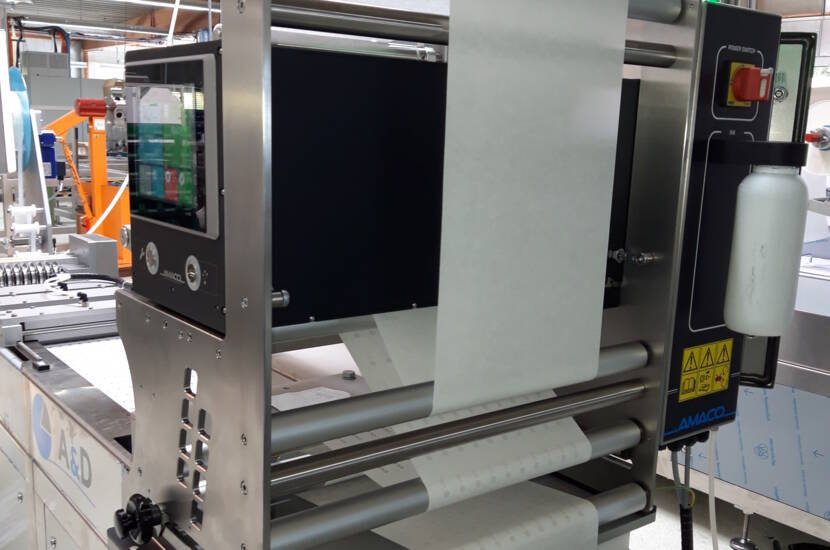

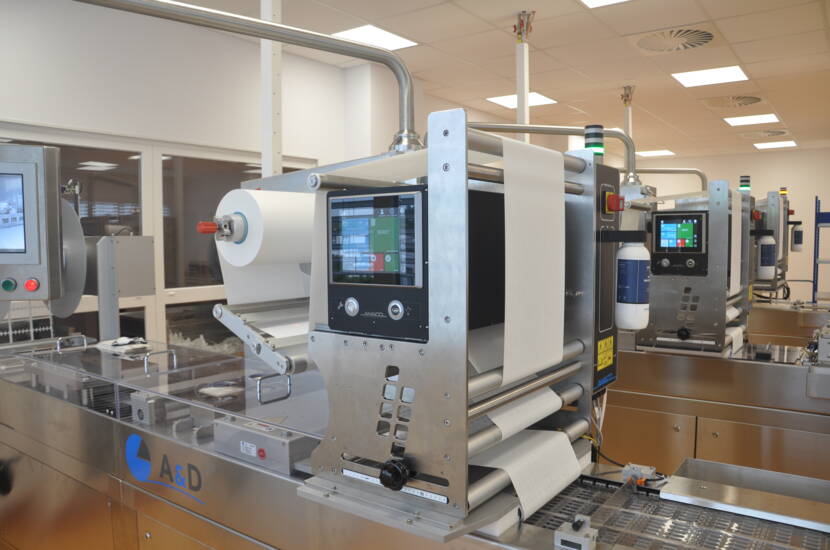

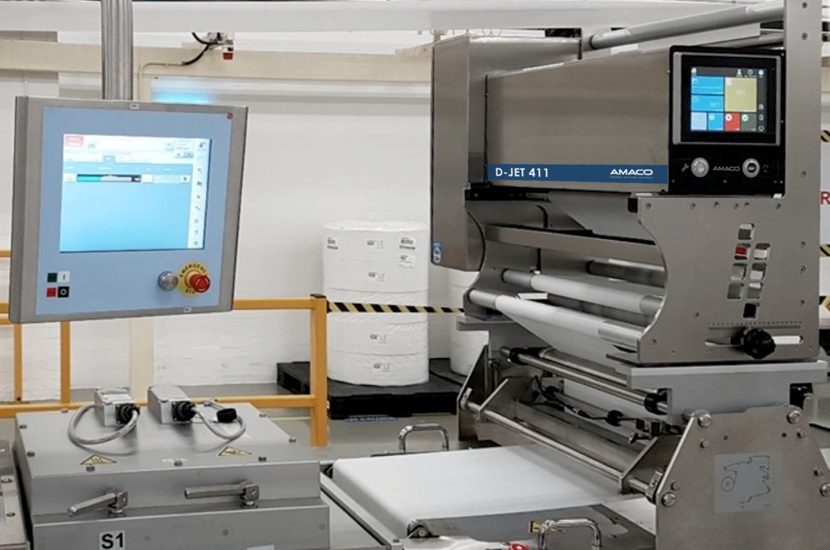

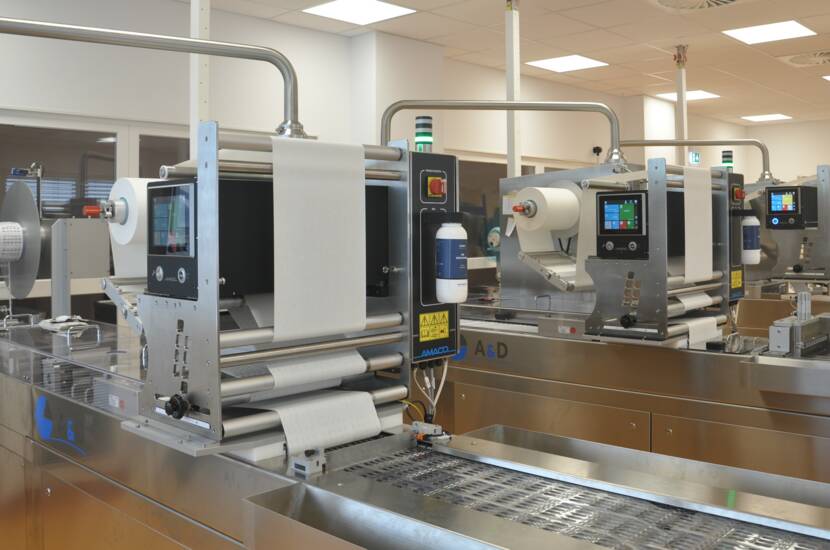

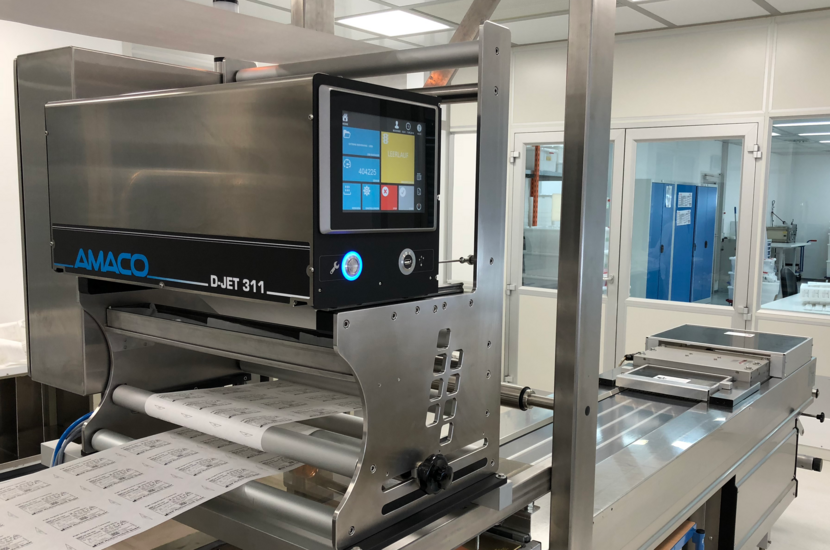

Project Pictures & Videos

Technical Data

Print Area max. [in web direction]	1000 mm
Print Area max. [accross the web]	210 mm
Print Resolution max.	180 x 180 to 360 DPI
Print Speed max.	500 - 1000 mm / sec.

Print Area max. [in web direction]	1000 mm
Print Area max. [accross the web]	350 mm
Print Resolution max.	180 x 180 to 360 DPI
Print Speed max.	500 - 1000 mm / sec.

Print Area max. [in web direction]	1000 mm
Print Area max. [accross the web]	420 mm
Print Resolution max.	180 x 180 to 360 DPI
Print Speed max.	500 - 1000 mm / sec.

Print Area max. [in web direction]	1000 mm
Print Area max. [accross the web]	560 mm
Print Resolution max.	180 x 180 to 360 DPI
Print Speed max.	500 - 1000 mm / sec.

Industries & Applications

Industries:

Medical Device Industry
Pharmaceutical Industry

Applications:

Medical Paper
Tyvek

Digital Piezo DOD Inkjet

Consumables

Ink & Solvent

A wide range of suitable inks and solvent for all our printing technologies.

learn more
